Product Features
-
IEC Standards
Design and production are based on IEC standards and comply with mandatory requirements of various countries. High standards, high safety, and high reliability ensure the stable operation of the energy storage system throughout its life cycle.
-
High Performance
All batteries are connected in series to avoid circulating current and ensure PCS operates at the highest efficiency range, thermal management system automatically adjusts the cooling strategy to maintain the best operating conditions of batteries.
-
Long Lifespan
The main components are from first-tier suppliers, combined with an intelligent battery management system, and the energy storage system has a cycle life of more than 10,000 times and a service life of 20 years.
-
Flexible Deployment
Highly integrated system, only external cables need to be connected on site, significantly reducing construction and operation and maintenance costs. The parallel connection of energy storage systems can reach several MW power stations.

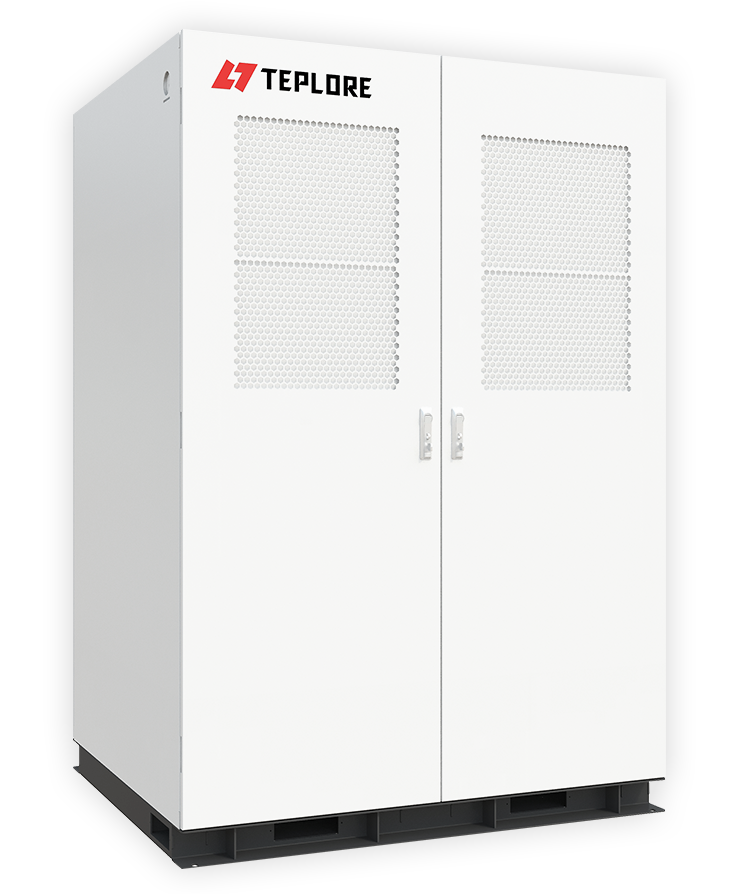

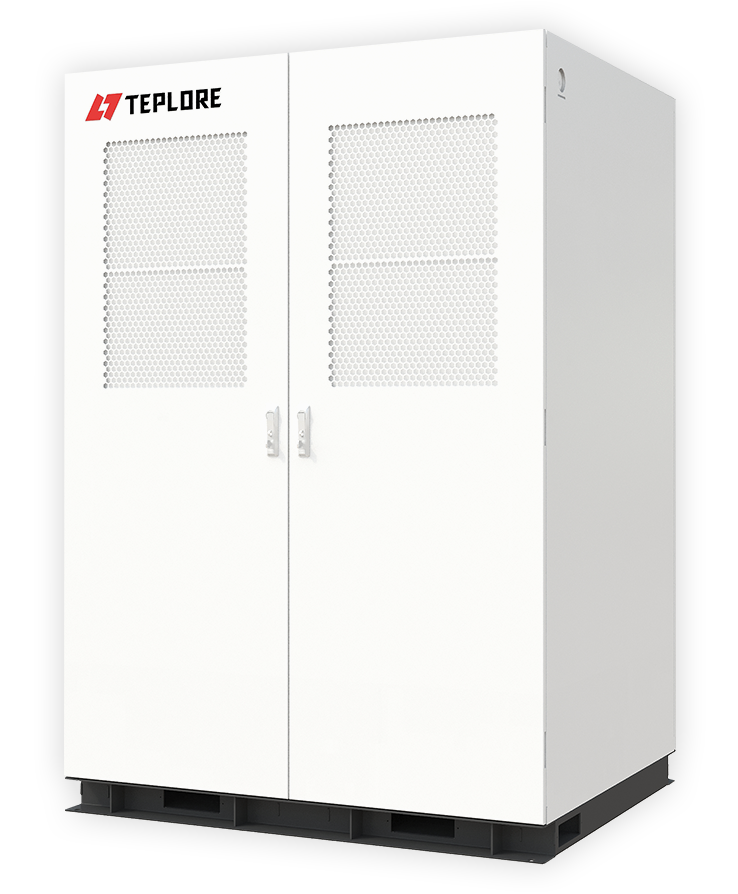

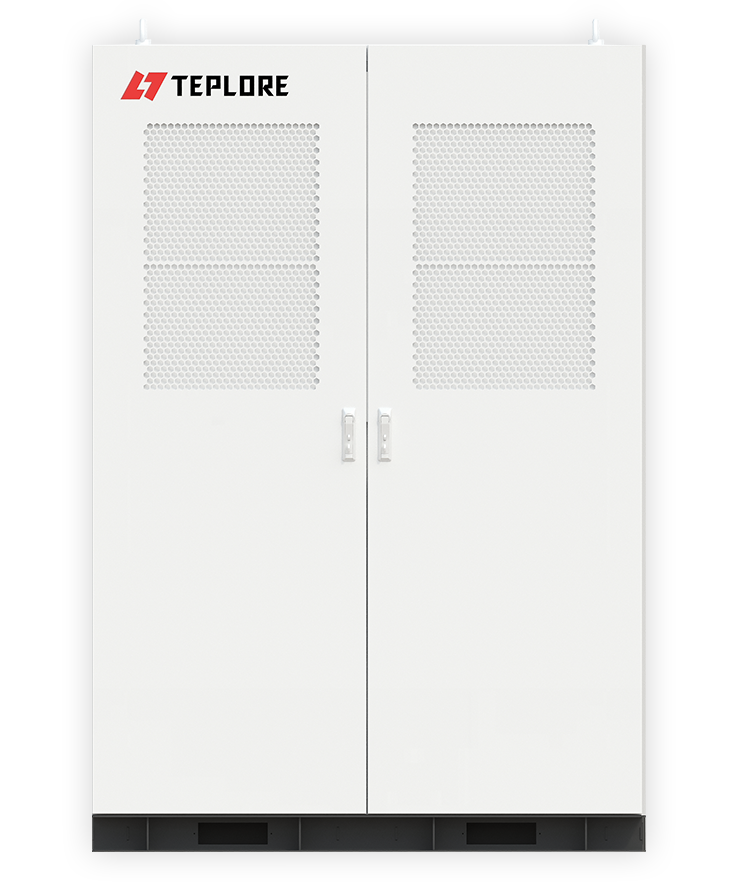

Tensorpack TEnergy Storage System

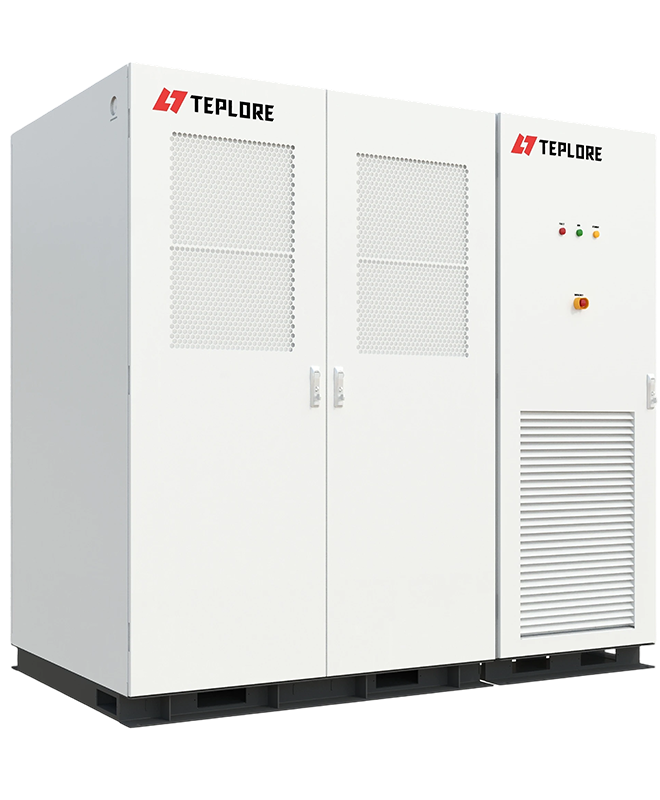

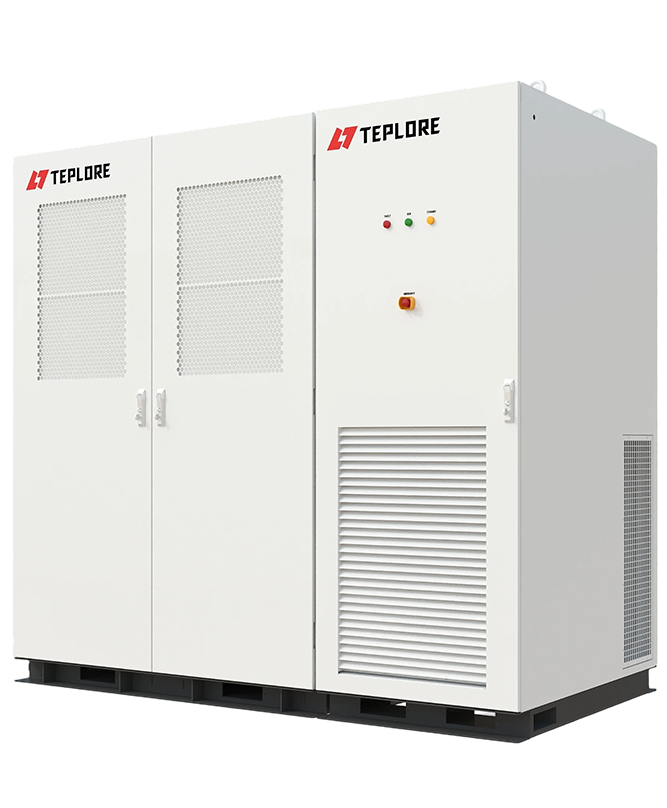

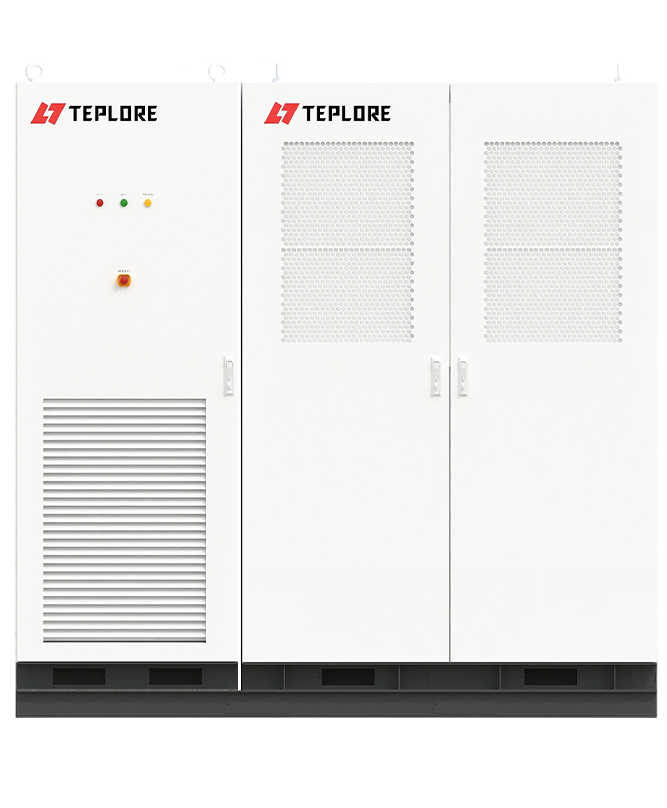

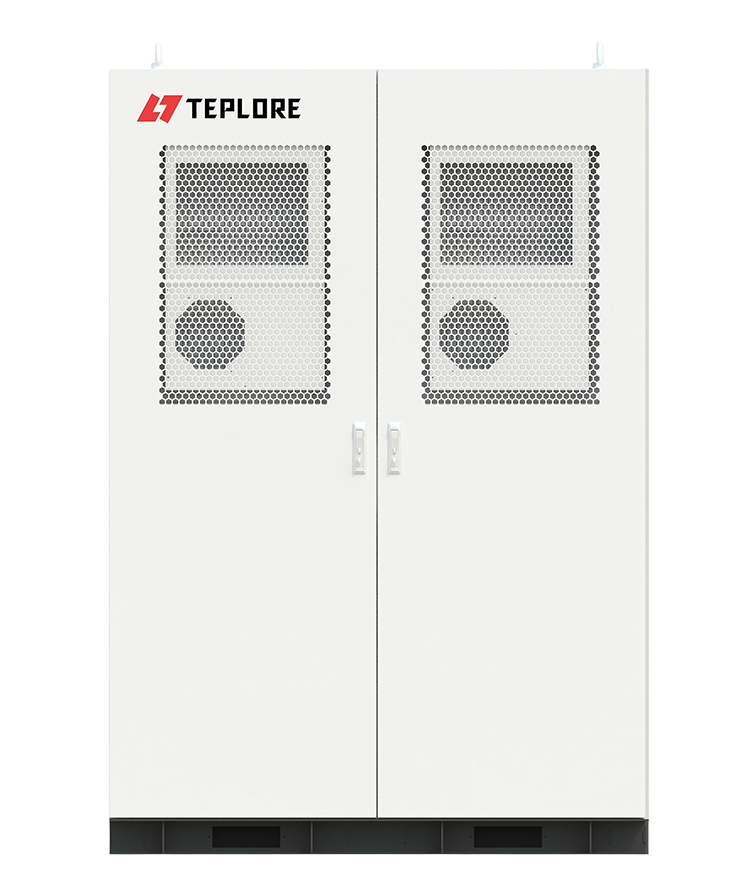

The Tensorpack T energy storage product is composed with a battery system and an AC control system. The battery system highly integrates LFP cells, BMS, high-voltage control box, an environmental control system, and a FFS as its core components.The AC control system highly integrates a Power Conversion System (PCS), AC power distribution, and a local controller as its core components.
The Tensorpack T series energy storage products feature flexible configuration, high integration, safety, efficiency, and plug-and-play capabilities. Through the flexible configuration and combination of systems, they can meet the energy storage application needs of commercial and industrial scenarios, including TOU(Time of Use), DCM(Demand Charge Management), PV consumption, emergency backup power, and other core applications.
-
91%Efficiency
-
10,000Cycles
-
20yLifespan
-
2㎡Footprint
IEC 62619、IEC 63056、IEC 62477、IEC 61000、IEC 60730
-
Australia
-
Brazil
-
China
-
EU
-
UK
Specification
| AC Parameters | |
|---|---|
| Power Rating | 100 kW |
| Maximum Power | 110 kVA |
| Grid Type | 3W + N + PE |
| Rated Grid Voltage | 400 V |
| Grid Voltage Range | 340~440 V |
| Maximum Current | 158 A |
| Grid Frequency | 50/60 Hz |
| Power Factor Range | -1~1 |
| DC Parameters | |
|---|---|
| Battery Type | LFP 306Ah |
| Energy | 211kWh ~ 265kWh |
| Voltage Range | 604.8V ~ 950.4V |
| Cycles expected @ 100% DoD | 70% EoL | 25°C +/-5°C 0.5C/0.5C | 10000 Times |
| System Parameters | |
|---|---|
| Highest Round-trip Efficiency | 91% |
| Operating Temperature | -30 ~ +55 ℃ |
| Relative Humidity | 0 ~ 100% RH, No Condensation |
| Operating Altitude | ≤2000 m |
| Communication Interface | Ethernet / RS485 |
| Communication Protocol | Modbus TCP/ Modbus RTU / MQTT / IEC104 |
| Ingress Protection | IP55 |
| Thermal Management | Forced Air Cooling |
| Noise Rating | ≤70dB |
| Battery System Dimension(W×D×H) | 1500 x 1300 x 2200mm |
| AC Control System Dimension (W×D×H) | 800 x 1300 x 2200mm |
| Battery System Weight | 2380kg ~ 2720kg |
| AC Control System Weight | 390kg ~ 575kg |
