Products / Tensorpack L
TENSORPACK · L
Tensorpack L
C&I · Microgrid
Rated power
50–130 kW
Energy
261 / 522 kWh
Cooling
Liquid-cooled
Voltage
400 V
C&I · Microgrid
All Tensorpack L variants share the same platform — 400 V, liquid-cooled, 15-year warranty, outdoor cabinet, IEC · UL · CE. Power and energy vary by model.

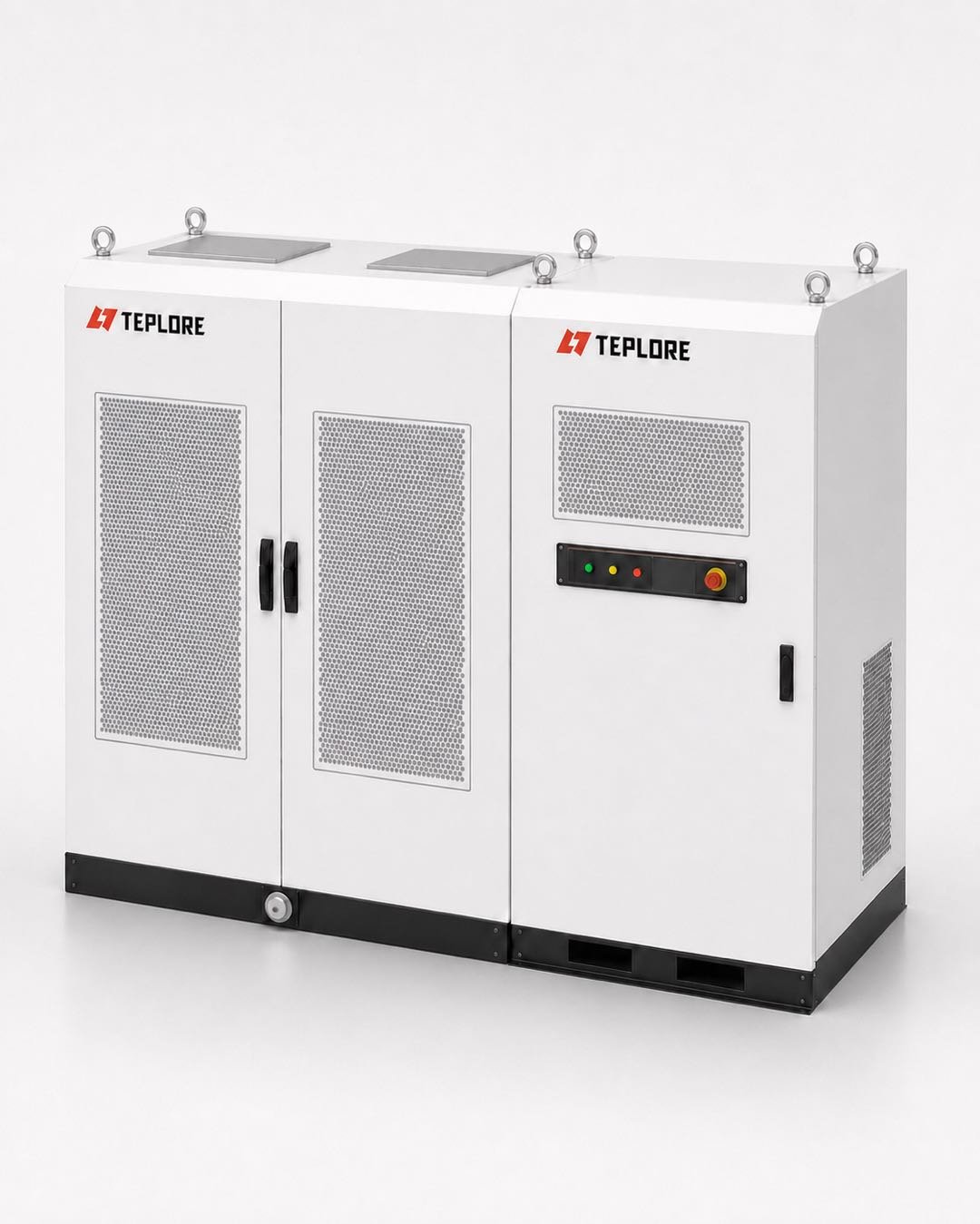

AC-coupled — a grid-tied PCS for storage-only systems. Off-grid operation is possible but requires an added controller.
| Model | Rated power | Energy |
|---|---|---|
| Tensorpack L-B261-G100 | 100 kW | 261 kWh |
| Tensorpack L-B261-G130 | 130 kW | 261 kWh |
| Tensorpack L-B522-G100 | 100 kW | 522 kWh |
| Tensorpack L-B522-G130 | 130 kW | 522 kWh |

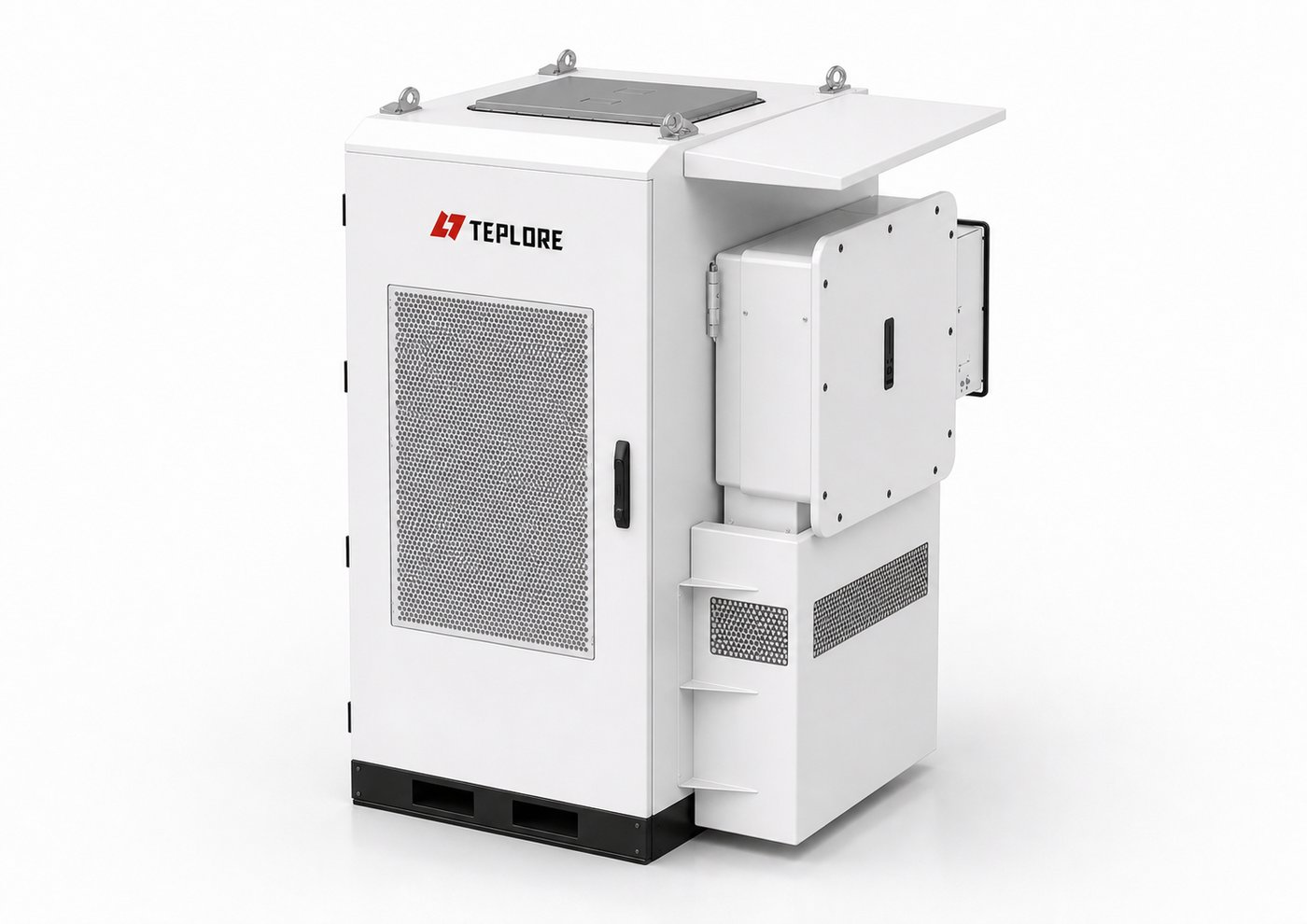

DC-coupled — a hybrid PCS that also accepts PV and a diesel generator, with an integrated STS for on-/off-grid transfer and off-grid operation.
| Model | Rated power | Energy |
|---|---|---|
| Tensorpack L-B261-H50 | 50 kW | 261 kWh |
| Tensorpack L-B261-H100 | 100 kW | 261 kWh |
| Tensorpack L-B261-H125 | 125 kW | 261 kWh |
Product & safety certification to international standards — recognised across markets outside North America and Japan.
Certified for the grid — worldwide. Inverter / PCS interconnection compliance across 21 markets.
From the cell to the cabinet, multiple independent systems watch, isolate and contain faults — backed by international product and environmental certification.
Per-cell voltage and temperature monitoring, balancing, and over- / under-voltage and over-temperature protection.
Over-current and short-circuit protection, temperature and insulation monitoring, and module-level disconnection.
DC + AC breakers, coordinated BMS / EMS trip, emergency stop, and earth-fault / leakage protection.
Per-cabinet aerosol suppression that releases on a confirmed fire signal.
System-level water suppression that can connect to an external fire hydrant.
Explosion-proof enclosure that contains and safely vents pressure.
Explosion-proof ventilation that clears flammable gas build-up.
Central fire alarm unit that can link into the customer's building fire system.
CW1310-07A multi-gas detector plus heat-sensitive cable for cabinet-level sensing.
