Products / Tensorpack T
TENSORPACK · T
Tensorpack T
C&I · Microgrid
Rated power
50–130 kW
Energy
217 / 241 / 265 kWh
Cooling
Air-cooled
Voltage
400 V
C&I · Microgrid
All Tensorpack T variants share the same platform — 400 V, air-cooled, 15-year warranty, outdoor cabinet, IEC · UL · CE. Power and energy vary by model.

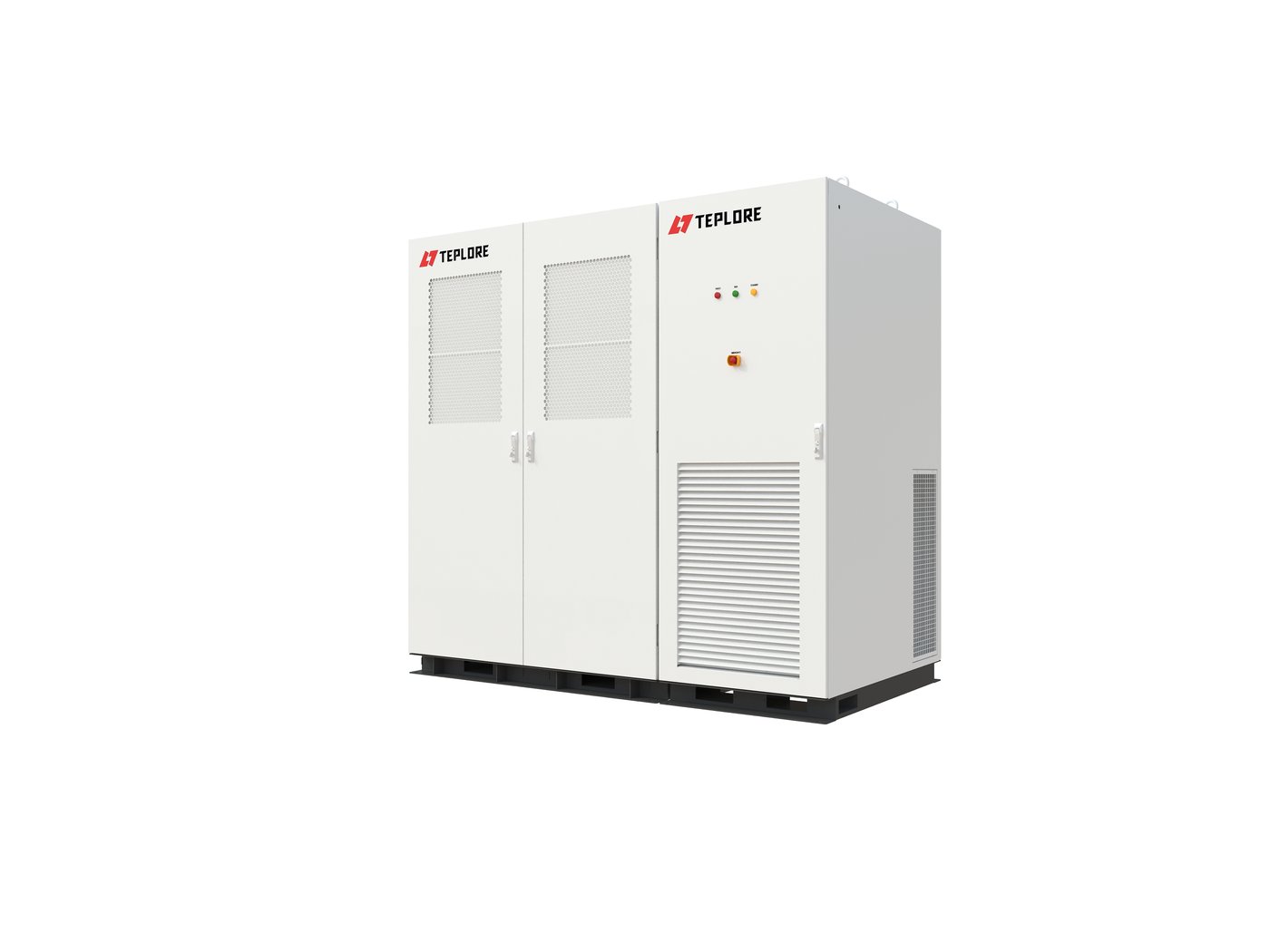

AC-coupled — a grid-tied PCS for storage-only systems. Off-grid operation is possible but requires an added controller.
| Model | Rated power | Energy |
|---|---|---|
| Tensorpack T-B217-G100 | 100 kW | 217 kWh |
| Tensorpack T-B241-G100 | 100 kW | 241 kWh |
| Tensorpack T-B265-G100 | 100 kW | 265 kWh |
| Tensorpack T-B434-G100 | 100 kW | 434 kWh |
| Tensorpack T-B482-G100 | 100 kW | 482 kWh |
| Tensorpack T-B530-G100 | 100 kW | 530 kWh |
| Tensorpack T-B265-G130 | 130 kW | 265 kWh |
| Tensorpack T-B434-G130 | 130 kW | 434 kWh |
| Tensorpack T-B482-G130 | 130 kW | 482 kWh |
| Tensorpack T-B530-G130 | 130 kW | 530 kWh |

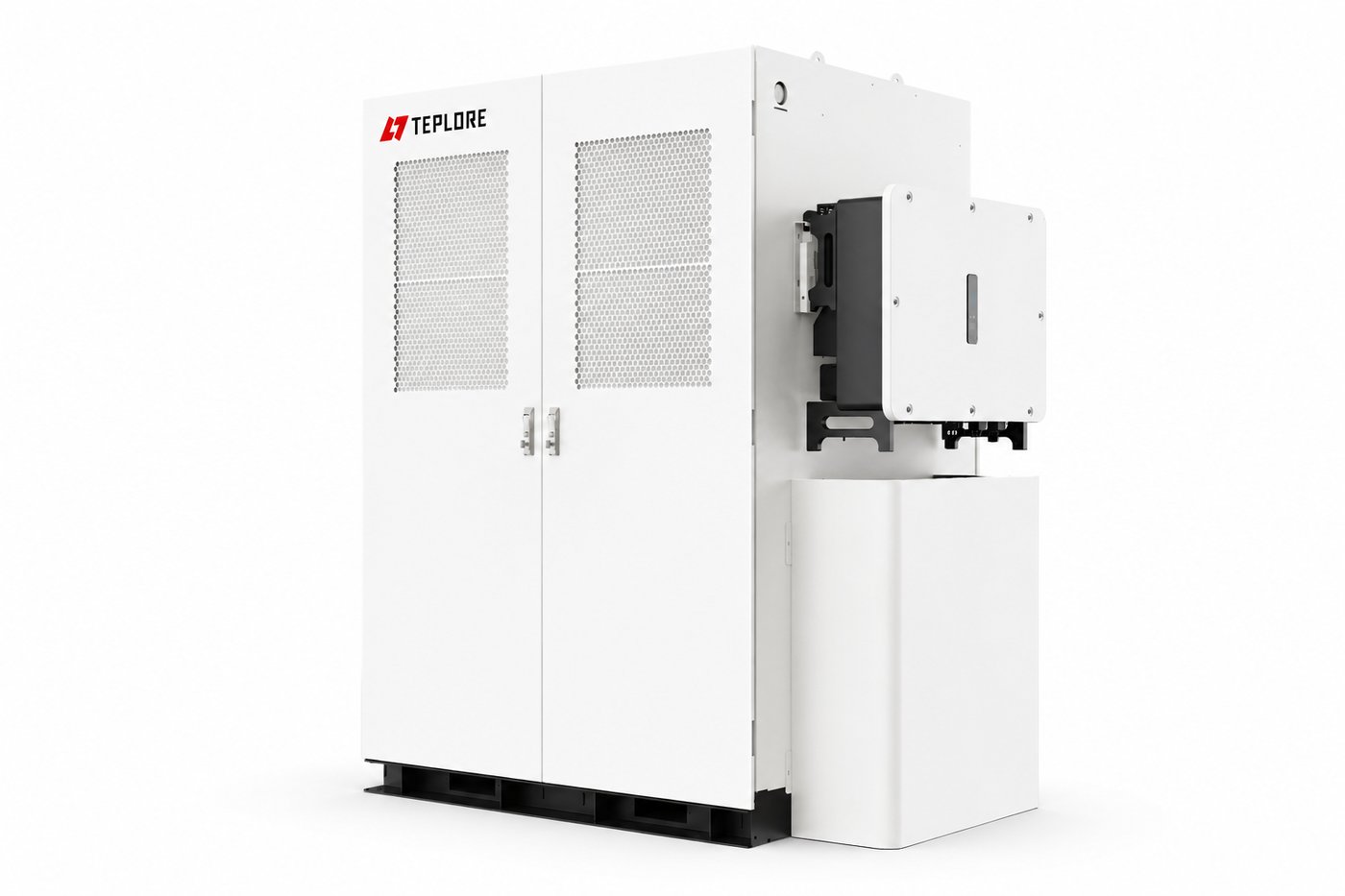

DC-coupled — a hybrid PCS that also accepts PV and a diesel generator, with an integrated STS for on-/off-grid transfer and off-grid operation.
| Model | Rated power | Energy |
|---|---|---|
| Tensorpack T-B120-H50 | 50 kW | 120 kWh |
| Tensorpack T-B217-H50 | 50 kW | 217 kWh |
| Tensorpack T-B241-H50 | 50 kW | 241 kWh |
| Tensorpack T-B217-H100 | 100 kW | 217 kWh |
| Tensorpack T-B241-H100 | 100 kW | 241 kWh |
| Tensorpack T-B265-H100 | 100 kW | 265 kWh |
| Tensorpack T-B265-H125 | 125 kW | 265 kWh |
Product & safety certification to international standards — recognised across markets outside North America and Japan.
Certified for the grid — worldwide. Inverter / PCS interconnection compliance across 21 markets.
From the cell to the cabinet, multiple independent systems watch, isolate and contain faults — backed by international product and environmental certification.
Per-cell voltage and temperature monitoring, balancing, and over- / under-voltage and over-temperature protection.
Over-current and short-circuit protection, temperature and insulation monitoring, and module-level disconnection.
DC + AC breakers, coordinated BMS / EMS trip, emergency stop, and earth-fault / leakage protection.
Per-cabinet aerosol suppression that releases on a confirmed fire signal.
System-level water suppression that can connect to an external fire hydrant.
Explosion-proof enclosure that contains and safely vents pressure.
Explosion-proof ventilation that clears flammable gas build-up.
Central fire alarm unit that can link into the customer's building fire system.
CW1310-07A multi-gas detector plus heat-sensitive cable for cabinet-level sensing.
