Tensorpack M241

  • Hybrid System

  • DC Coupled

  • Seamless Back Up

Contact Us

Download
  • 02.png
  • 01.png
  • 03.png

SCROLL TO EXPLORE

Core Advantages of Tensorpack M

b1_img02.jpg b1_imgph01.jpg
  • Ultimate Integration

    Combining high-performance batteries and a hybrid inverter into a single, compact cabinet, this all-in-one architecture minimizes footprint and complexity. The streamlined design reduces external cabling and compatibility issues, offering a sleek, space-saving solution for small commercial premises.

  • Flexible Scalability

    Designed with a modular architecture, Tensorpack M supports seamless capacity expansion. Users can easily stack battery modules or parallel systems to match growing business energy demands, allowing for a "pay-as-you-grow" investment strategy that prevents over-provisioning.

  • Resilient Energy Hub

    Featuring direct PV input and UPS-level switching capabilities, the system acts as a robust energy hub. It ensures continuous power during grid outages and intelligently manages solar self-consumption, maximizing energy independence and security for critical business loads.

  • Simplified Deployment

    Pre-wired and pre-tested at the factory, the system enables rapid, plug-and-play installation. This low-barrier deployment significantly reduces on-site labor costs and commissioning time, making professional energy storage accessible to businesses without specialized engineering teams.

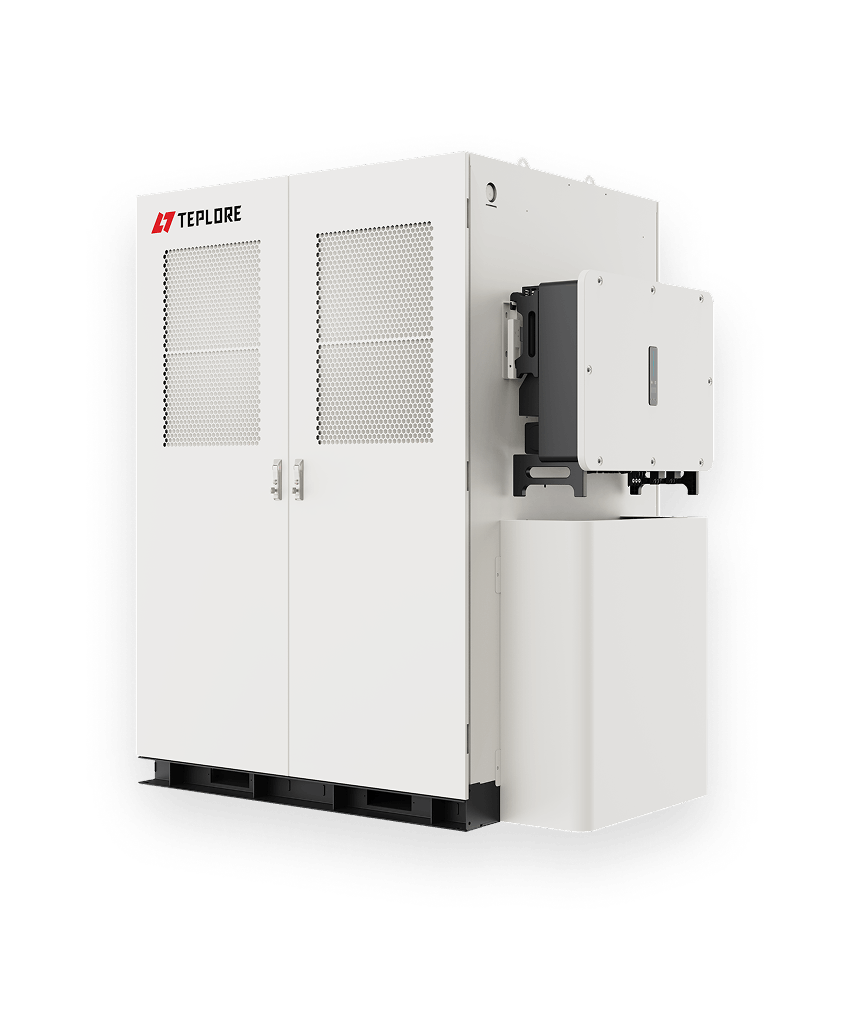

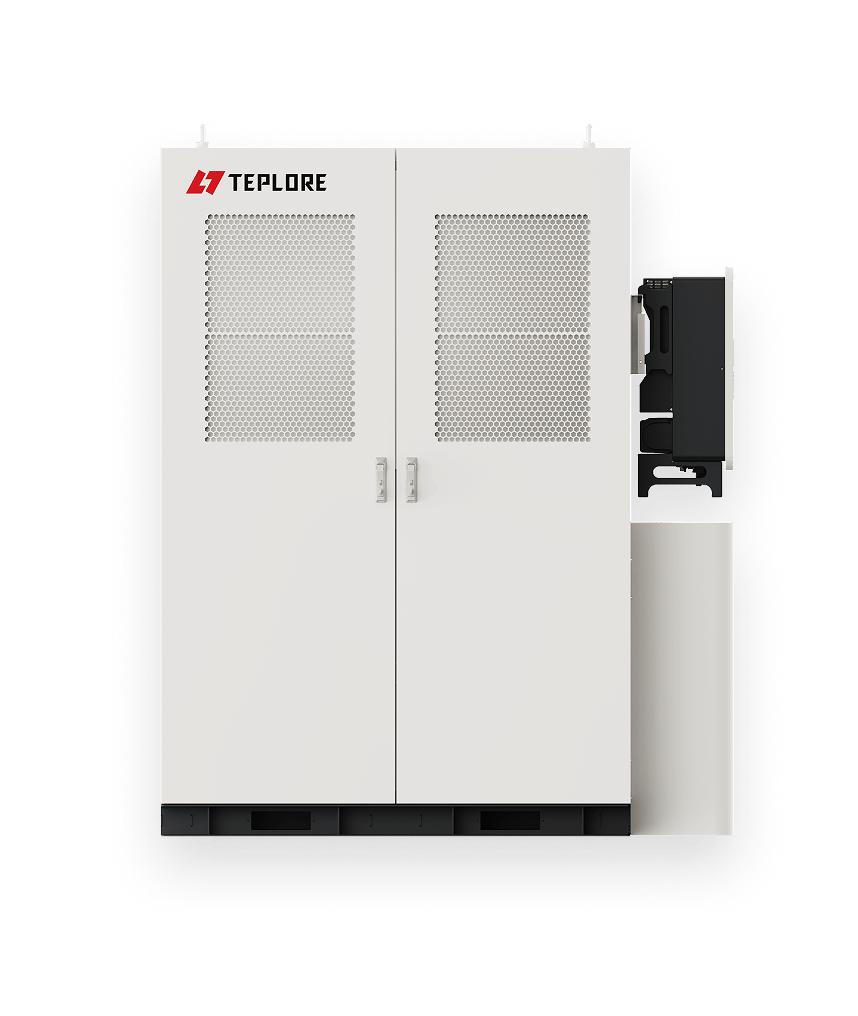

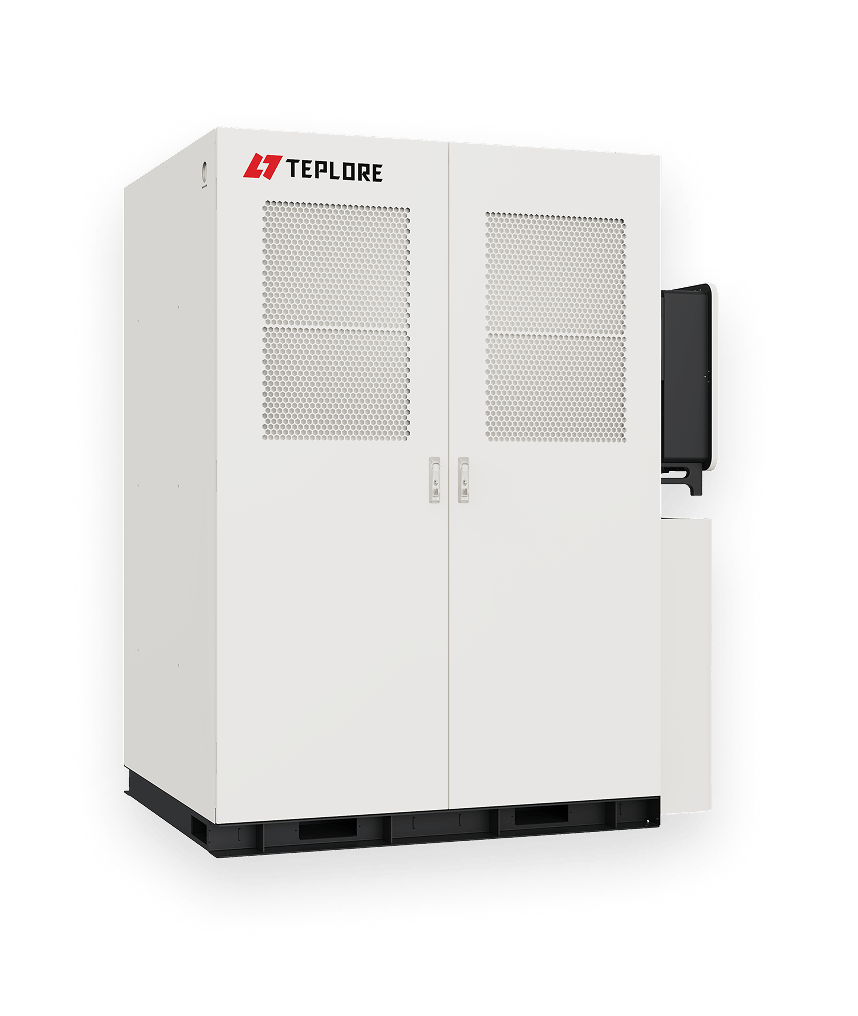

Tensorpack M241Energy Storage System

The Tensorpack M241 energy storage product integrates a 100kW Hybrid inverter and a 241kWh battery system, engineered specifically for micro-grid applications. The Hybrid inverter integrates a hybrid inverter which is capable for grid-forming, and enabling seamless interaction with distributed energy resources. The battery system features cutting-edge 314 LFP cells, a multi-layered BMS, high-voltage controls, and an adaptive environmental management system, ensuring reliability across diverse operating conditions. Designed for high integration, safety, and efficiency, the Tensorpack M series offers plug-and-play deployment and modular scalability, allowing flexible power and energy configurations to match micro-grid demands.

It excels in core applications such as renewable energy integration (e.g., solar/wind hybridization), off-grid operation, peak shaving, island mode resilience, and dynamic load balancing, empowering energy independence and stability for remote, commercial, or industrial micro-grid ecosystems.


  • b1_icon03.svg
    10000

    Cycles

  • b1_icon04.svg
    20
    y

    Lifespan

  • b1_icon05.svg
    1.1
    ㎡

    Footprint

Certification
  • laiyin.png
  • thumb_b1img04.jpg

IEC62619,IEC 63056, IEC 62477,IEC 60730, IEC 61000, UN38.3, UN3480

Grid Compliance
  • thumb_b1img09.jpg

    EU

  • 65c0d6bb93eae.jpg

    China

  • thumb_b1img10.jpg

    UK


Specification

Download
AC Parameters
Rated Power 50 kW
Wiring Configuration 3P4W
Rated Grid Voltage 400 V
Operating temperature -25~55℃
Max. Continuous AC Current 72.17A
Rated Grid Frequency 50Hz/60Hz
Critical Load 3P4W
DC Parameters
Cell Type LFP 306Ah CATL
Rated Energy 109 kWh
Voltage Range 313.6~403.2 V
Cycles expected @ 100% DoD | 70% EoL | 25°C +/-5°C 10000 Times
System Parameters
Operating Temperature -25 ~ 55 ℃
Relative Humidity 0 to 95% RH, non - condensing
Altitude ≤2000 m
Communication Interface 4G Router (optional)
Communication Protocol Modbus TCP
Anti-corrosion C4,C5(optional)
IP Level Equipment cabinet: IP54
Cooling Method Air-cooling
Fire suppression Aerosol
Certification IEC62619,IEC 63056, IEC 62477,IEC 60730, IEC 61000, UN38.3, UN3480
Dimension (W*D*H) 1270x1340x2094 mm
Weight About 1.8T
